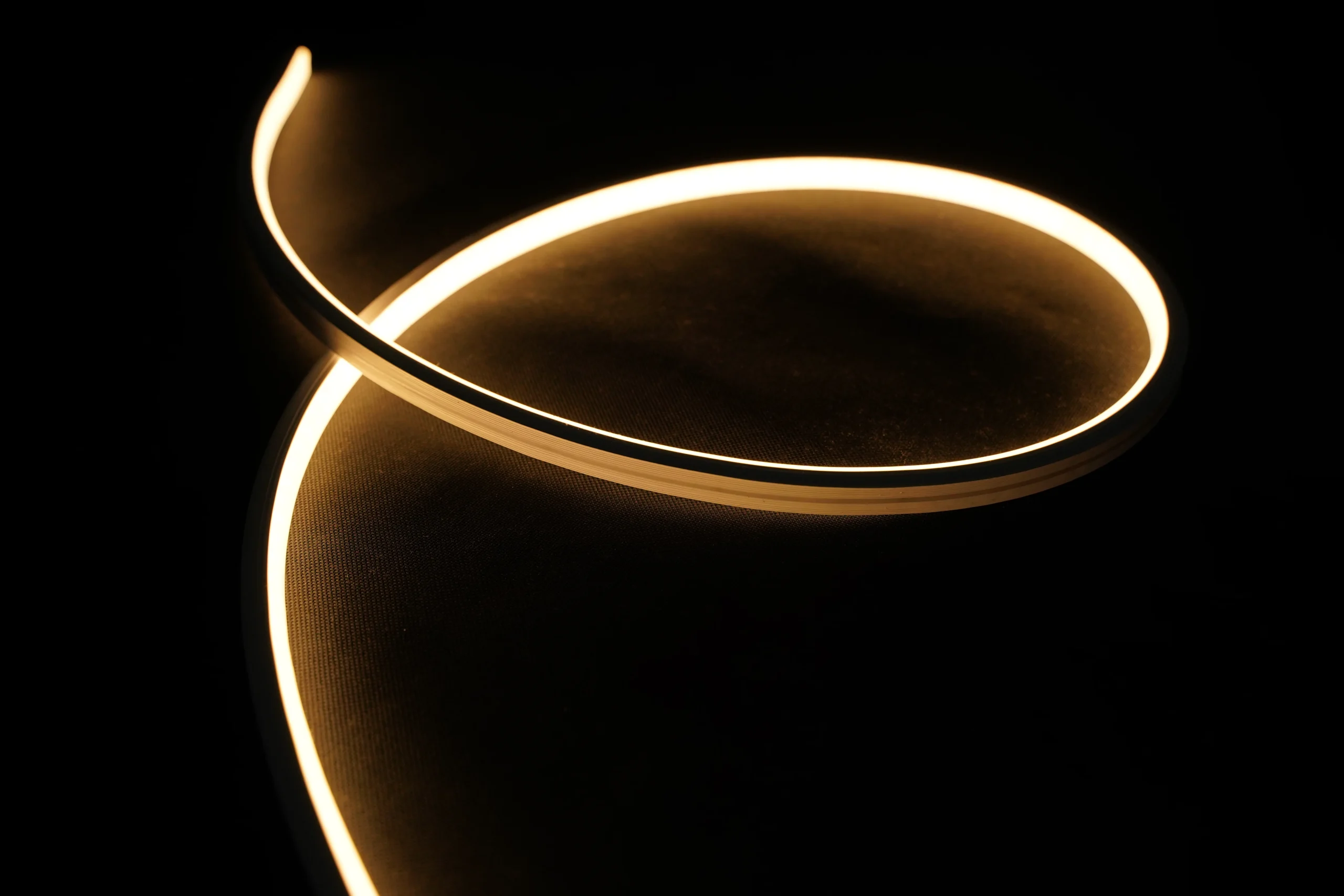

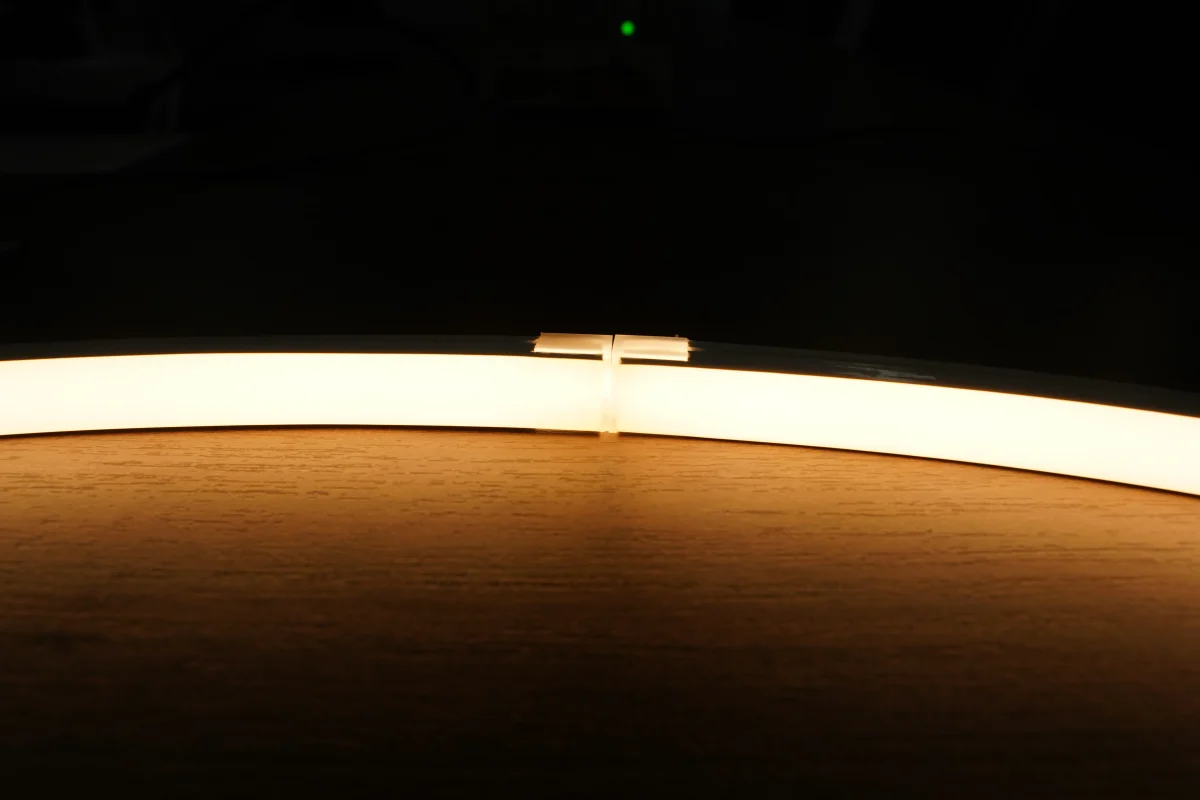

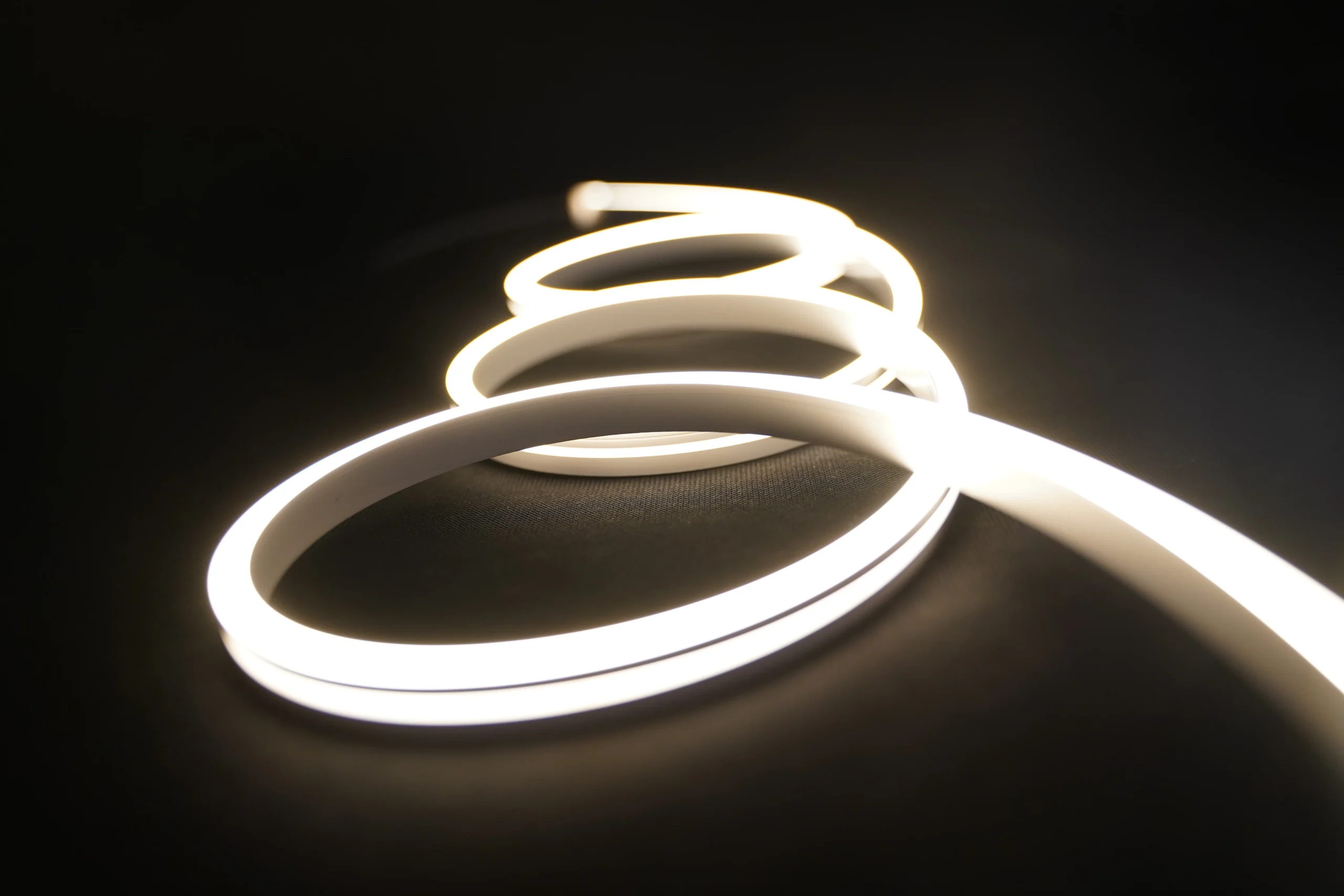

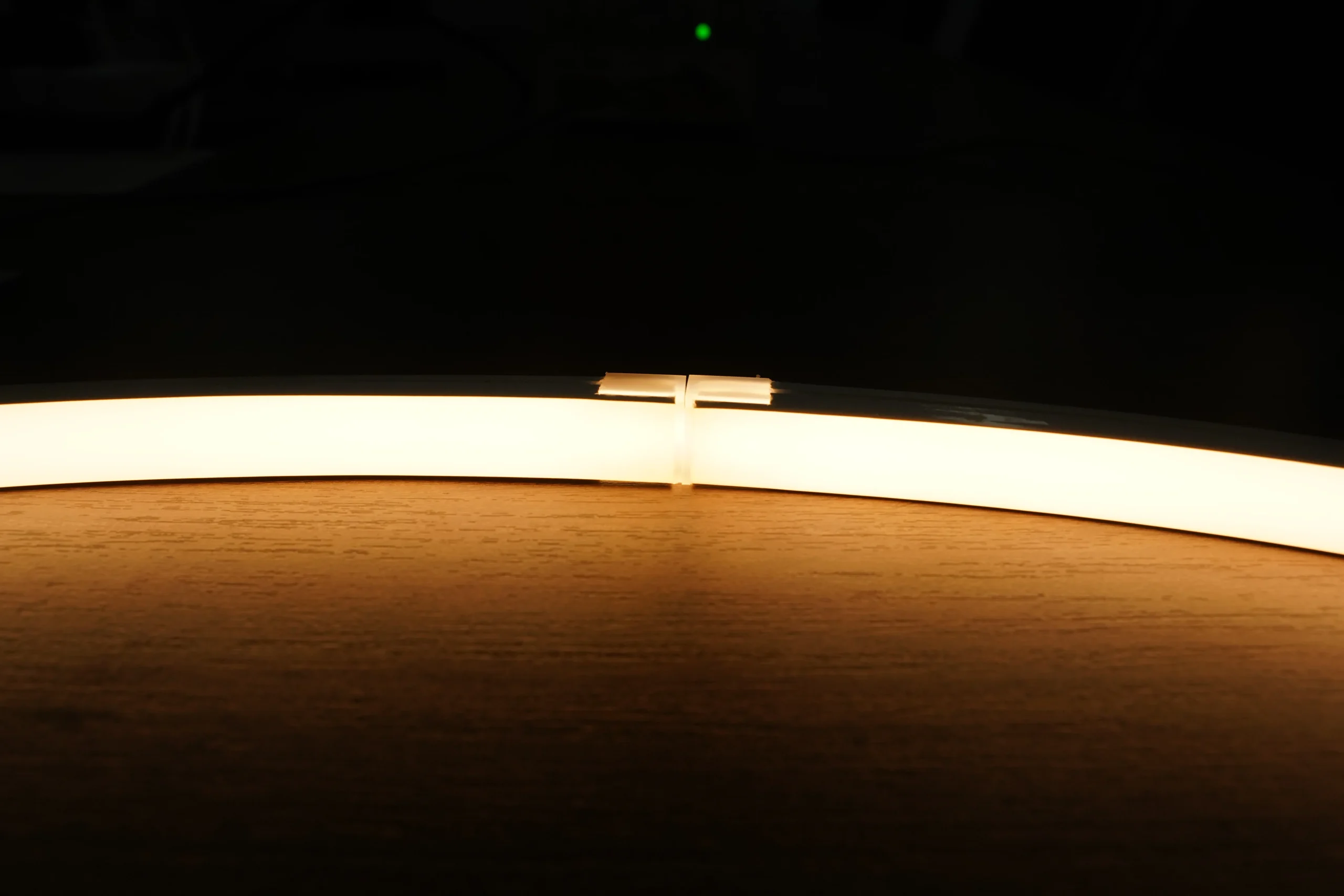

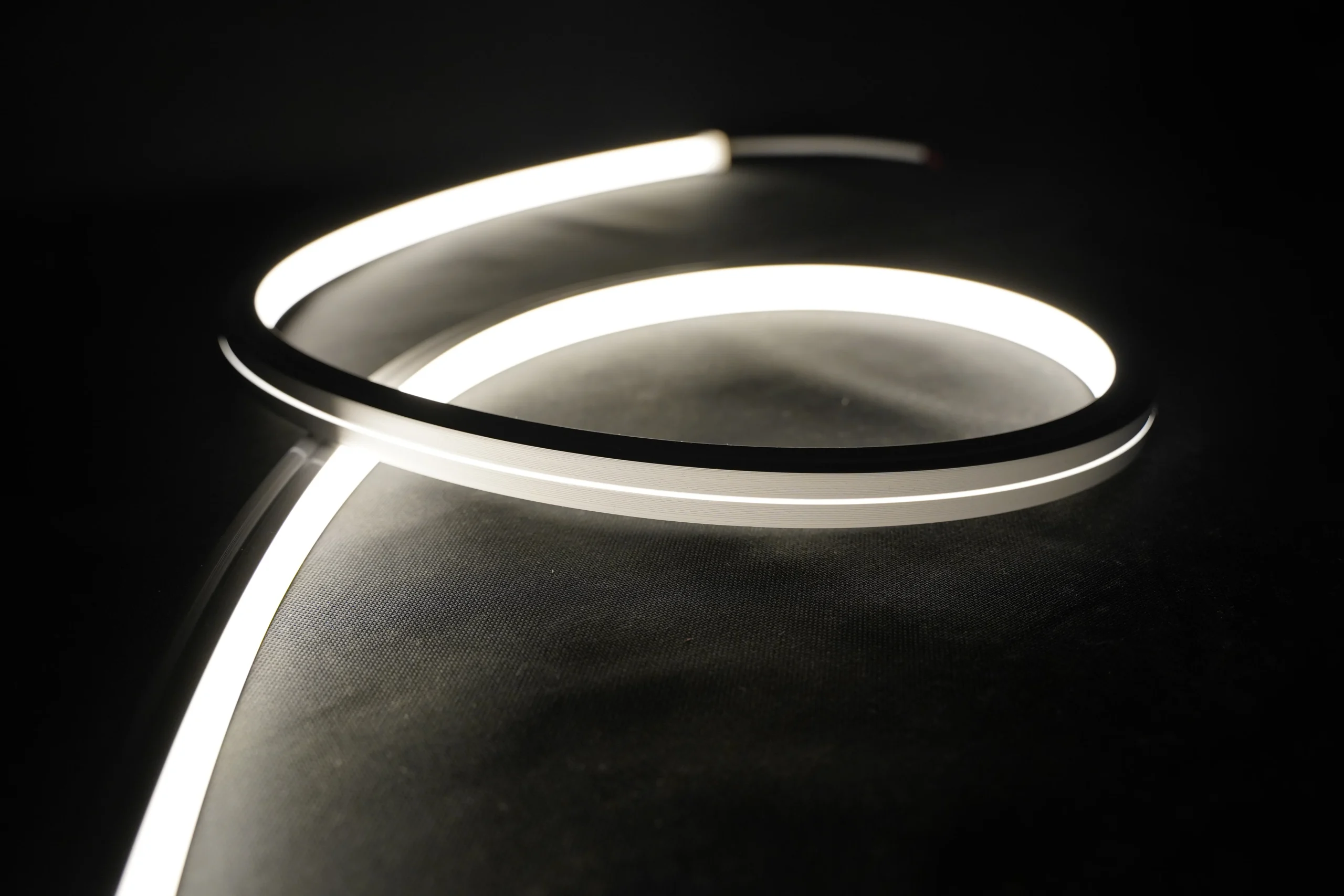

HO-T1010
🔍
🔍
🔍
🔍Features
- Light source: high light efficiency SMD2835;
- Process and material: high light transmittance, food grade environmental protection silicone.
- Integrated extrusion molding process, IP66 grade;
- Light effect: unique optical light distribution design,uniform surface light without shadow;
Application Scenarios
- Indoor decorative lighting, ideal for ceiling outlines, wall background ambiance, bedside lighting, under-cabinet, wardrobe and bookcase hidden lights;
- Entertainment linear decoration, Perfect for bars, KTVs, themed hotels, cyber cafes, cultural tourism blocks and stage edge decoration. ;
- Architectural Engineering & Outdoor Landscape Lighting，suitable for high-rise building exterior wall outline lighting, bridge guardrail linear lighting, park landscape path boundary light,etc.
Specification
| Category | Parameter | Value / Description |
| Basic Specifications | Color Range | W/WW |
| Light Source | SMD 2835 | |
| Source Life | 35,000h | |
| Material | Silicon | |
| Weight | 0.12kg/m | |
| Max. Length | 25m | |
| Environmental Specifications | Working Temperature | -20°C to 45°C |
| Storage Temperature | -20°C to 50°C | |
| Protection Rating | IP66 | |
| Electrical Specifications | Working Voltage | DC24V / DC48V |
| Max. Power | 12W | |
| Optical Specifications | Beam Angle | ≥120° |
Order infor
| Model | Voltage | Power | Leds/M | Control Mode | Bending style | Luminous Efficacy | Cutting unit | Max. Length |
| HO-T1010 | DC24V | 8W | 120pcs W | ON/OFF | Top-Bend/Side-Bend | 60lm/W | 50mm | 5m |
| HO-T1010 | DC24V | 12W | 140pcs W | ON/OFF | Top-Bend | 60lm/W | 50mm | 5m |
| HO-T1010 | DC48V | 8W | 120pcs W | ON/OFF | Top-Bend/Side-Bend | 60lm/W | 100mm | 25m |
Physical Dimension：
Integrated endcap
Traditional endcap
Download
Datasheet -
Spectrum Report -
IES Report -
User Manual -
Detail

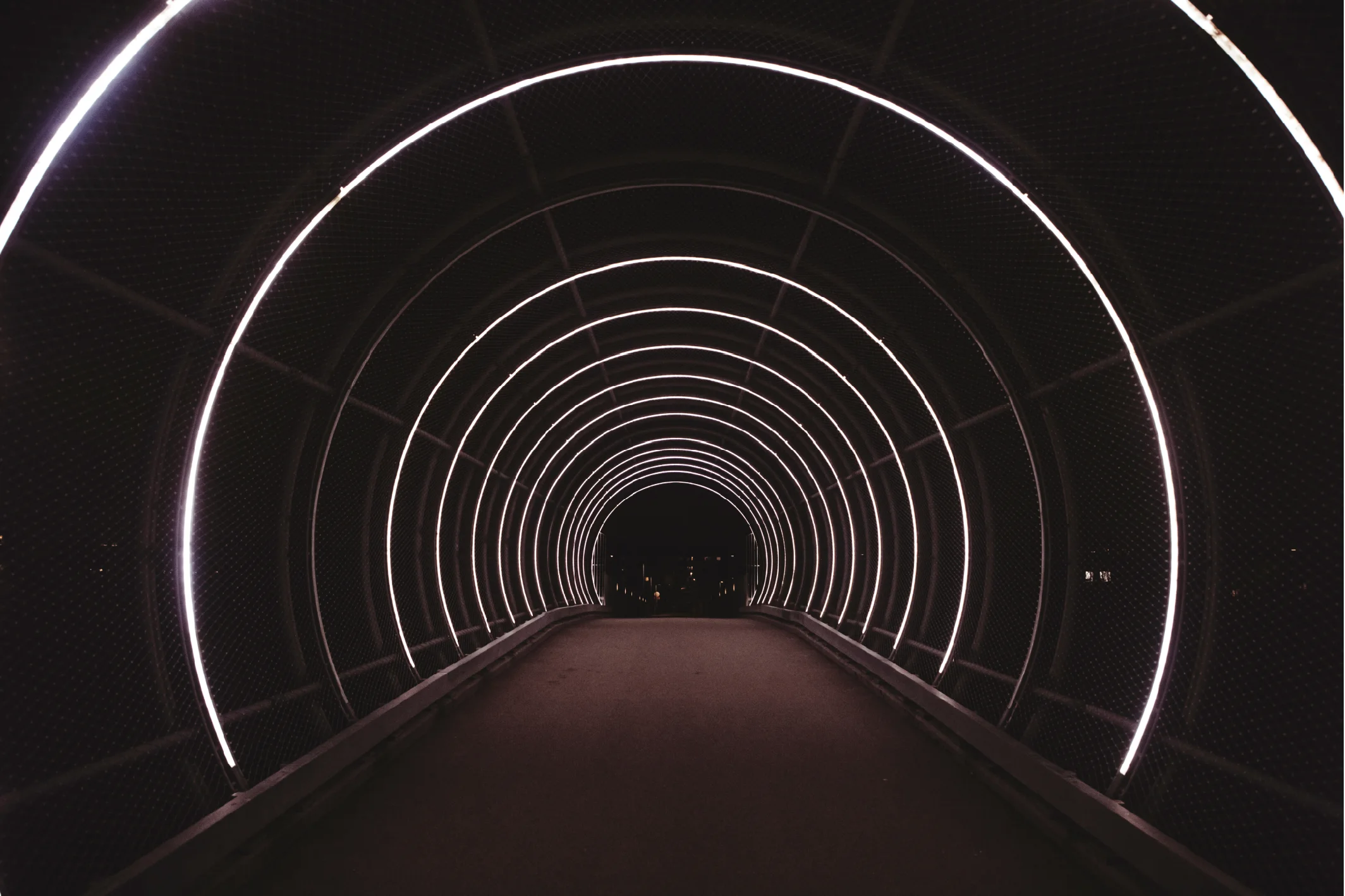

Application Case
