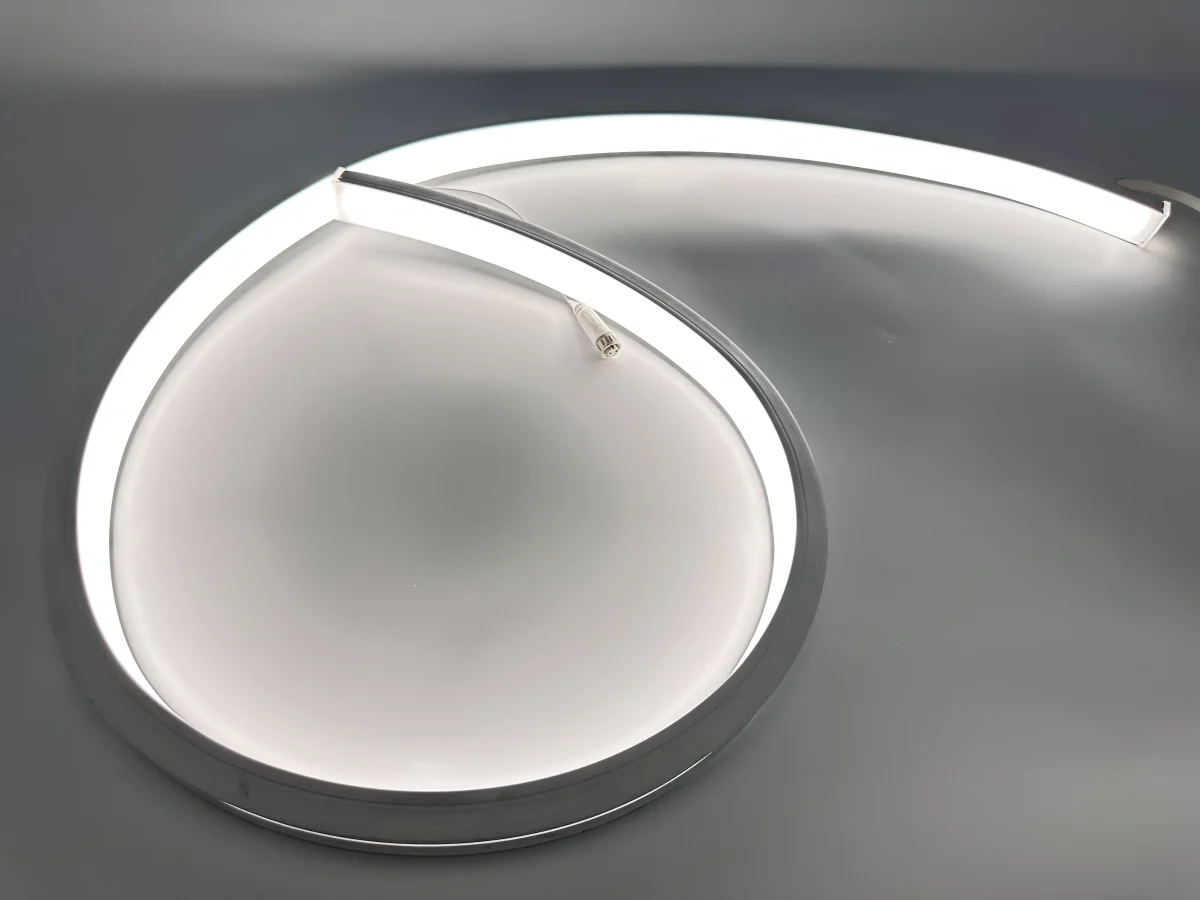

HO-T3020
🔍
🔍
🔍
🔍
🔍Features
- Light source: high light efficiency SMD2835，SMD5050;
- Process and material: high light transmittance, food grade environmental protection silicone.
- Integrated extrusion molding process, IP66 grade;
- Light effect: unique optical light distribution design,uniform surface light without shadow;
Application Scenarios
- Indoor decorative lighting (including bars, wine cabinets, and wardrobes, clothing store decoration, kitchen cabinet decoration, recessed lighting);
- Entertainment linear decoration, perfect for bars, KTVs, themed hotels, cyber cafes, cultural tourism blocks and stage edge decoration;
- Architectural Engineering & Outdoor Landscape Lighting，suitable for high-rise building exterior wall outline lighting, bridge guardrail linear lighting, park landscape path boundary light,etc.
Specification
| Category | Parameter | Value / Description |
| Basic Specifications | Color Range | W/RGB/RGBW |
| Light Source | SMD 2835, SMD5050 | |
| Source Life | 35,000h | |
| Material | Silicon | |
| Weight | 0.5kg/m | |
| Max. Length | 15m | |
| Environmental Specifications | Working Temperature | -20°C to 45°C |
| Storage Temperature | -20°C to 50°C | |
| Protection Rating | IP66 | |
| Electrical Specifications | Working Voltage | DC24V / DC48V |
| Max. Power | 25W | |
| Optical Specifications | Beam Angle | ≥120° |
Order infor
| Model | Voltage | Power | Leds/M | Control Mode | Bending style | Luminous Efficacy | Cutting unit | Max. Length |
| HO-T3020 | DC24V | 20W | 240pcs W | ON/OFF | Top-Bend | 60lm/W | 50mm | 5m |
| HO-T3020 | DC24V | 14W | 240pcs W | DMX512 (8pixels) | Top-Bend | 60lm/W | 125mm | 5m |
| HO-T3020 | DC24V | 18W | 240pcs W | DMX512 (10pixels) | Top-Bend | 60lm/W | 100mm | 5m |
| HO-T3020 | DC24V | 14W | 160pcs W+WW | DMX512 (8pixels) | Top-Bend | 60lm/W | 125mm | 5m |
| HO-T3020 | DC24V | 13W | 120pcs RGB | DMX512 (10pixels) | Top-Bend | 30lm/W | 100mm | 5m |
| HO-T3020 | DC24V | 18W | 120pcs RGBW | DMX512 (10pixels) | Top-Bend | 40lm/W | 100mm | 5m |
| HO-T3020 | DC24V | 14W | 160pcs RGBW | DMX512 (8pixels) | Top-Bend | 40lm/W | 125mm | 5m |
| HO-T3020 | DC48V | 20W | 240pcs W | ON/OFF | Top-Bend | 60lm/W | 100mm | 15m |
| HO-T3020 | DC48V | 20W | 240pcs W | DMX512 (10pixels) | Top-Bend | 60lm/W | 100mm | 10m |
| HO-T3020 | DC48V | 20W | 120pcs RGB | DMX512 (10pixels) | Top-Bend | 30lm/W | 100mm | 10m |
| HO-T3020 | DC48V | 25W | 120pcs RGBW | DMX512 (10pixels) | Top-Bend | 40lm/W | 100mm | 10m |
| Physical Dimension：
Unit：mm |
