HO-WT2323D

Integrated molding environment-friendly silicone body, low thermal resistance PCB heat dissipation design；
Can be cut,Min. Cutting length 125mm,Max. Cascade 5m,gap-free connection.

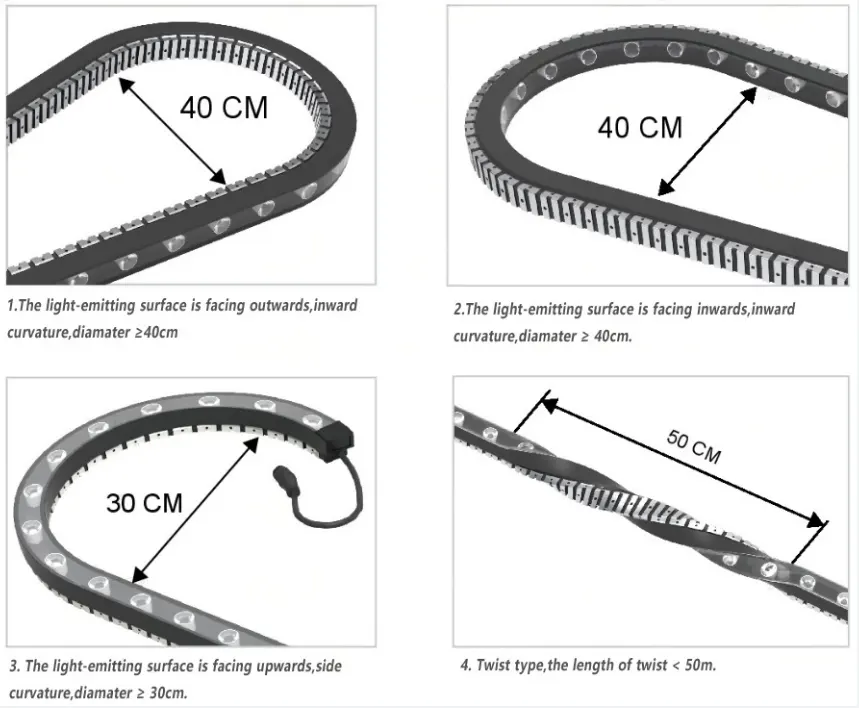

Can be arbitrarily curved, positive and side bending at the same time, widely used in curved wall, non-standard wall, round wall；
Washing height reach 1m,uniform light output,without darkness.
Easy and flexible installation,small size, light weight, to replace the bulky traditional aluminum LED wall washer.

Indoor Commercial Space Lighting, widely applied in office corridors, hotel lobbies, exhibition centers, and shopping mall interiors.
Outdoor Building Facade Lighting Projects, suitable for exterior wall lighting of office buildings, commercial plazas, residential communities and landscape architectures.
Landscape Park & Municipal nightscape Lighting Used for park landscape walls, waterfront promenades, municipal corridors, scenic area sightseeing walls and public green belt boundary lighting.
Indoor Commercial Space Lighting, widely applied in office corridors, hotel lobbies, exhibition centers, and shopping mall interiors.

Category	Parameter	Value / Description
Basic Specifications	Color Range	W/WW
	Light Source	SMD 3030/SMD3535
	Source Life	35,000h
	Material	Silicon
	Max. Length	5m
Environmental Specifications	Working Temperature	-20°C to 45°C
	Storage Temperature	-20°C to 50°C
	Protection Rating	IP66
Electrical Specifications	Working Voltage	DC24V
	Max. Power	29W
Optical Specifications	Beam Angle	15°、20°、25°、36°、40°、60°、1520°、2545°、30*55°

Item code	Voltage	Power	LED qty	LED color	Control Mode	Gray level	Efficiency	Cutting unit	CRI
HO-WT2323D	24V	24W	24PCS/M	2700 -6500K	ON/OFF	/	80lm/w	125mm	≥80
HO-WT2323D	24V	24W	24PCS/M	2700 -6500K	DMX512 8Pixels	High Gray	80lm/w	125mm	≥80
HO-WT2323D	24V	29W	30PCS/M	2700 -6500K	ON/OFF	/	80lm/w	100mm	≥80
HO-WT2323D	24V	24W	24PCS/M	RGBW	DMX512 8Pixels	High Gray	55lm/w	125mm	≥80

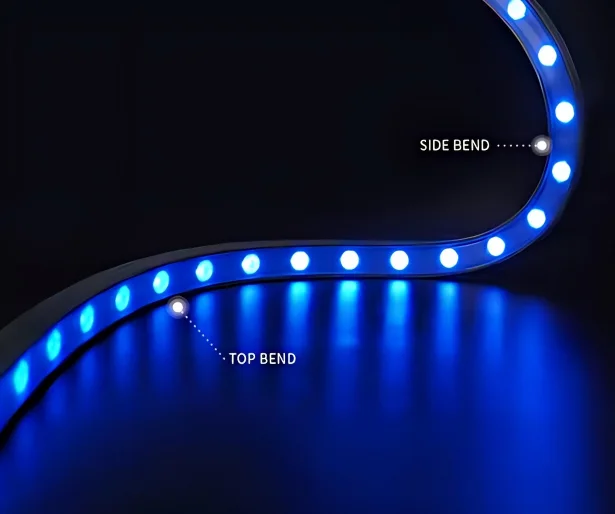

Remark: HO-WT2323D, D for both top bending and side bending
