| Product Description

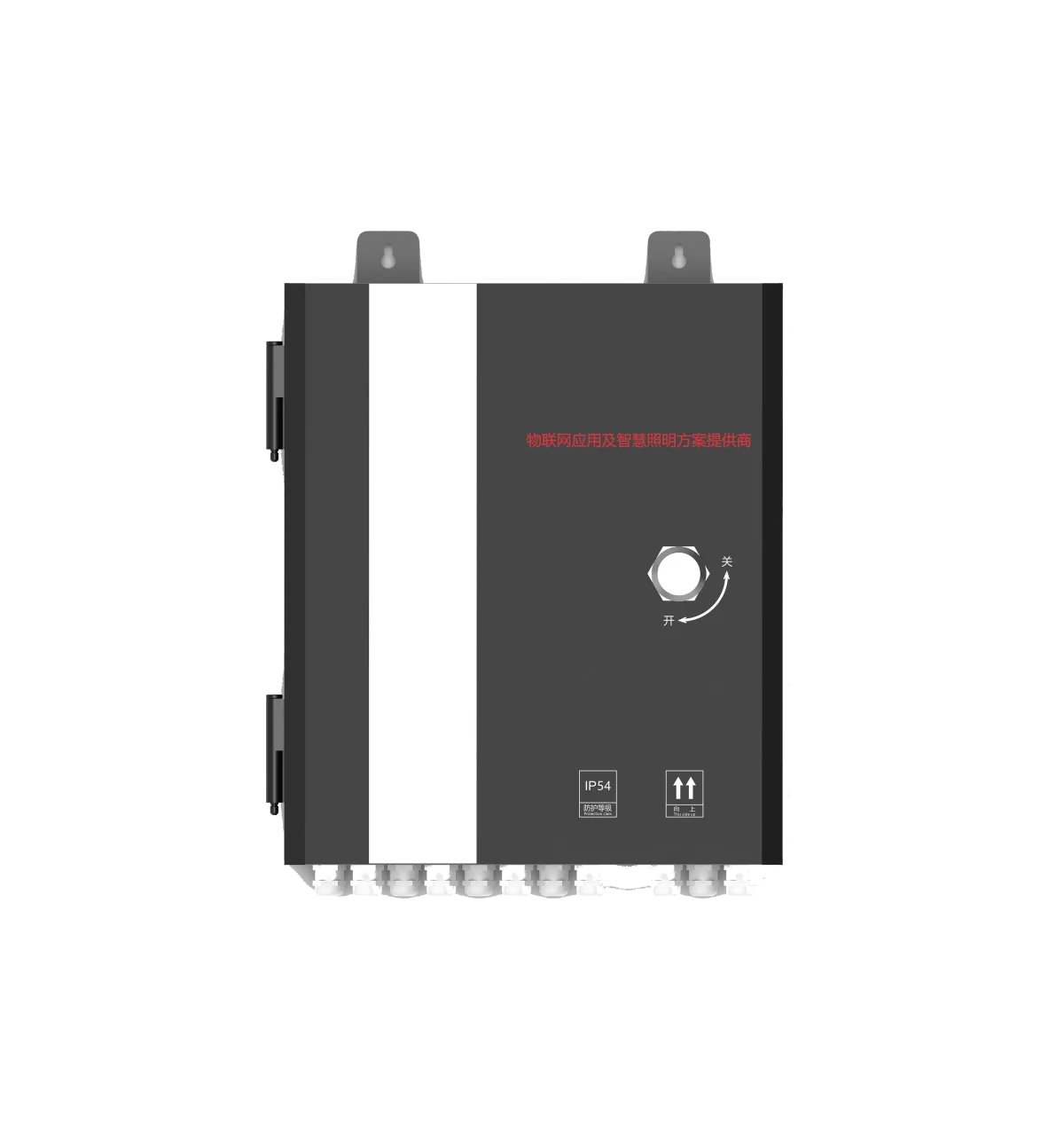

The HO-2905T controller is designed for large and medium-sized outdoor lighting engineering project.Using advanced digital video processing technology and FPGA technology,optimize the algorithm model is the core to achieve perfect video performance, 8 port supporting the design of smart city cluster light Internet control system of the controller.the controller is used to optimize the network transmission protocol, supports standard fast LAN connection, very flexible. HO-2905T controller is matched with the switch of supporting the use of the lighting system network, can also support the standard exchange unit and use of the existing network or LAN resources.
Features
l Sub-Controller,Need work with main controller
l 8 output port,max 512 pixels
l Support Ethernet Interface and TCP/IP/UDP protocol
l Support parallel connection with switch:decrease the amount of the cascade connection of the controllers to increase the system stability.
l Support GPS synchronize/BTS synchronize control system
l Maximum support 60 FPS.support 65536 grey scale.
l Supoort standard DMX512/1990 protocol and expend DMX512 protocol
l Support independently control of the Red, Green,Blue color.Users will get the mix-white color.more effective and easier.
l Support automated,timing,preset program files.
l Support different type of protocol in one system.
l More effective protection circuit to protect each ports of the controller. |
