All In One Controller

HO-Y880A all-in-one controller is an independent small lighting controlling system.  HO-LED design for small lighting systems. It adopts leading ARM technology and optimized algorithm model to reproduce perfect colors; the system has the advantage of simple and reliable wiring and can use directly without external sub-controller. The system software can support all Honey lamps and standard DMX512 lamps.

• Off-line all-in-one controller,integrate master controller and slave controller and may be directly provided with lights；
• Support 8-port output, with each port controlling no more than 1,024 pixels；
• Support Ethernet interface and TCP/IP/UDP data communication protocols；
• SupportRS232 and 485 interface one each, support parameter configuration and third-party device access；
• Support external third-party sensing devicesuch as door opening detection, water immersion sensor, fire alarm sensor, etc.；
• Maximum support 60FPS.Support 65536 gray scale；
• Support standard DMX512/1990 general protocol and DMX512 extension protocol；
• Support address line with SPI serial lamps；
• Support three-primary-color independent brightness control to make the precise adjustment of white balance simpler and more effective；
• Support automatic, timed and preset festival effect play；
• SD card storage of no more than 32G to preset no more than 99 program files；
• Support the mixed use of lighting fixtures in different types and protocols, to achieve high compatibility；
• Be provided with port enhancement type protective circuit to achieve better protection of port



Basic Specification
External Size	249*305*77mm
Shell Material	High quality electro-galvanized steel sheet+power injection
Weight	2kg
Output port	8port
Supported Lights	Support all series of Honey products and standard DMX512 lamps
External Interface	One RS485 interface, One RS232 interface, support MODBUS/RS485 bus protocol, RS232 serial port protocol, support two 5~12V digital switch input;；
Storage Medium	SD card
Communication Port	Fast Ethernet port
Communication Protocol	TCP/IP/UDP/RS485/RS232
Working Condition
Working Temperature	-30°C~50°C
Storage Temperature	-40°C~70°C
Humidity Range	0%-90%
Protection Rating	IP54
Electrical Specification
Signal Connector	Dedicated EXC connector
Working Voltage	AC 220V
Maximum Wattage	20W

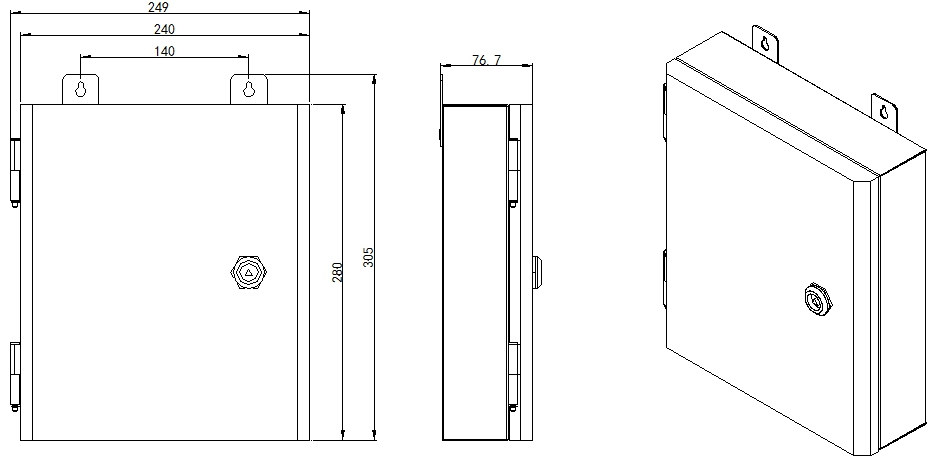

Physical Dimension：



Available Model
Series	Model	Main Features	Working Voltage	Max Wattage	Size
HO-Y880A	HO-Y880A	All-in-on Controller, 100Mbps Ethernet port, Outdoor, 8000 pixels, Standard,Can not be expanded	AC 220V	15W	249*305*77mm

  Controlling Diagram :
